Heap_Detective – The Simple Way To Detect Heap Memory Pitfalls In C++ And C

db3e02ab722873b0378b0d0ba9b9ec398ebc53e7937651bd54a40e4348730fb6


This tool uses the taint analysis technique for static analysis and aims to identify points of heap memory usage vulnerabilities in C and C++ languages. The tool uses a common approach in the first phase of static analysis, using tokenization to collect information.

The second phase has a different approach to common lessons of the legendary dragon book, yes the tool doesn’t use AST or resources like LLVM following parsers’ and standard tips. The approach present aims to study other ways to detect vulnerabilities, using custom vector structures and typical recursive traversal with ranking following taint point. So the result of the sum of these techniques is the Heap_detective.

The tool follows the KISS principle “Keep it simple, stupid!”. There’s more than one way to do a SAST tool, I know that. Yes, I thought to use graph database or AST, but this action cracked the KISS principle in the context of this project.

https://antonio-cooler.gitbook.io/coolervoid-tavern/detecting-heap-memory-pitfalls


Features

  • C and C++ tokenizer
  • List of heap static routes for each source with taint points for analysis
  • Analyser to detect double free vulnerability
  • Analyser to detect use after free vulnerability
  • Analyser to detect memory leak

To test, read the directory samplers to understand the context, so to run look that following:

$ git clone https://github.com/CoolerVoid/heap_detective

$ cd heap_detective

$ make
// to run
$ bin/heap_detective samplers/
note:
So don't try "$ cd bin; ./heap_detective"
first argv is a directory for recursive analysis

Note: tested in GCC 9 and 11

The first argument by command is a directory for recursive analysis. You can study bad practices in directory “samplers”.

Future features

  • Analyser to detect off-by-one vulnerability
  • Analyser to detect wild pointer
  • Analyser to detect heap overflow vulnerability

Overview

d856dc10843989ca2493e95b2949605baef34deb047f674136bea37e21754417

7605e11fa405cb97da47cad09231bc89951000e9c4027d28c5023ff95d908759

8e835d19b874299011a40ce30dc9c8bee9a045a650b7e0783c5995c2cfd59084

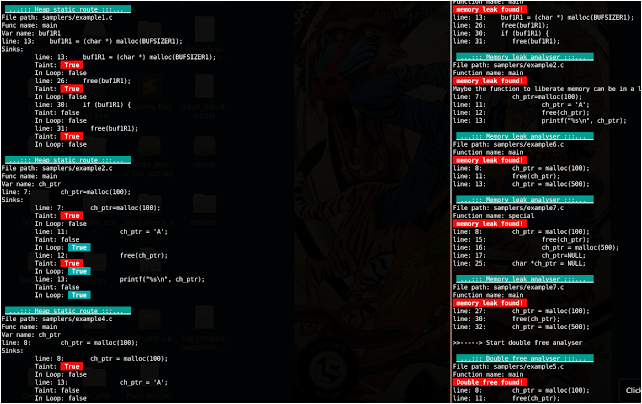

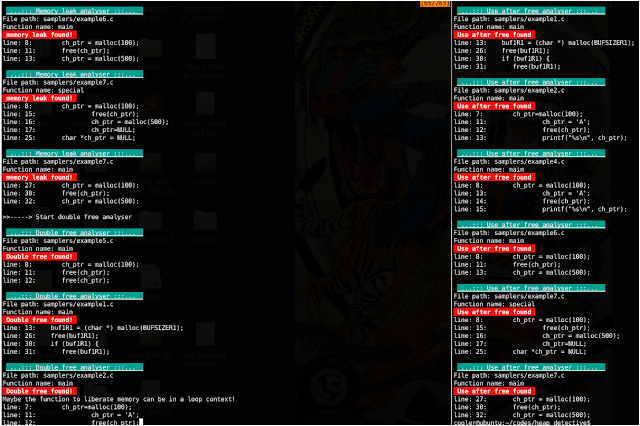

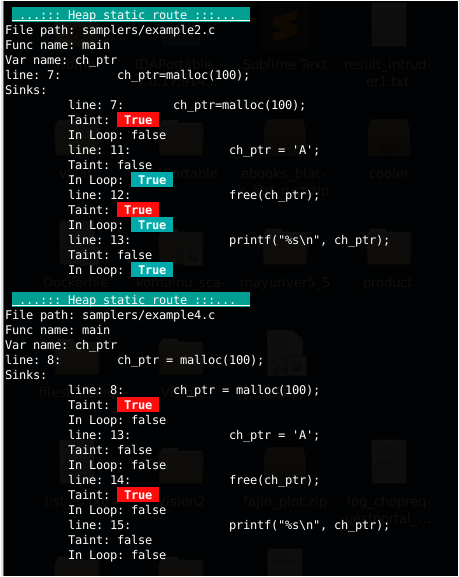

Output example:




Collect action done

...::: Heap static route :::...
File path: samplers/example3.c
Func name: main
Var name: new
line: 10: array = new obj[100];
Sinks:
line: 10: array = new obj[100];
Taint: True
In Loop: false

...::: Heap static route :::...
File path: samplers/example3.c
Func name: while
Var name: array
line: 27: array = malloc(1);
Sinks:
line: 27: array = malloc(1);
Taint: True
In Loop: false
line: 28: array=2;
Taint: false
In Loop: false
line: 30: array = malloc(3);
Taint: True
In Loop: false

...::: Heap static route :::...
File path: samplers/example5.c
Func name: main
Var name: ch_ptr
line: 8: ch_ptr = malloc(100);
Sinks:
line: 8: ch_ptr = malloc(100);
Taint: True
In Loop: false
line: 11: free(ch_ptr);
Taint: True
In Loop: false< br/> line: 12: free(ch_ptr);
Taint: True
In Loop: false

...::: Heap static route :::...
File path: samplers/example1.c
Func name: main
Var name: buf1R1
line: 13: buf1R1 = (char *) malloc(BUFSIZER1);
Sinks:
line: 13: buf1R1 = (char *) malloc(BUFSIZER1);
Taint: True
In Loop: false
line: 26: free(buf1R1);
Taint: True
In Loop: false
line: 30: if (buf1R1) {
Taint: false
In Loop: false
line: 31: free(buf1R1);
Taint: True
In Loop: false

...::: Heap static route :::...
File path: samplers/example2.c
Func name: main
Var name: ch_ptr
line: 7: ch_ptr=malloc(100);
Sinks:
line: 7: ch_ptr=malloc(100);
Taint: True
In Loop: false
line: 11: ch_ptr = 'A';
Taint: false
In Loop: True
line: 12: free(ch_ptr);
Taint: True
In Loop: True
line: 13: printf("%s\n", ch_pt r);
Taint: false
In Loop: True

...::: Heap static route :::...
File path: samplers/example4.c
Func name: main
Var name: ch_ptr
line: 8: ch_ptr = malloc(100);
Sinks:
line: 8: ch_ptr = malloc(100);
Taint: True
In Loop: false
line: 13: ch_ptr = 'A';
Taint: false
In Loop: false
line: 14: free(ch_ptr);
Taint: True
In Loop: false
line: 15: printf("%s\n", ch_ptr);
Taint: false
In Loop: false

...::: Heap static route :::...
File path: samplers/example6.c
Func name: main
Var name: ch_ptr
line: 8: ch_ptr = malloc(100);
Sinks:
line: 8: ch_ptr = malloc(100);
Taint: True
In Loop: false
line: 11: free(ch_ptr);
Taint: True
In Loop: false
line: 13: ch_ptr = malloc(500);
Taint: True
In Loop: false

...::: Heap static route :::...
File path: samplers/example7.c
Fu nc name: special
Var name: ch_ptr
line: 8: ch_ptr = malloc(100);
Sinks:
line: 8: ch_ptr = malloc(100);
Taint: True
In Loop: false
line: 15: free(ch_ptr);
Taint: True
In Loop: false
line: 16: ch_ptr = malloc(500);
Taint: True
In Loop: false
line: 17: ch_ptr=NULL;
Taint: false
In Loop: false
line: 25: char *ch_ptr = NULL;
Taint: false
In Loop: false

...::: Heap static route :::...
File path: samplers/example7.c
Func name: main
Var name: ch_ptr
line: 27: ch_ptr = malloc(100);
Sinks:
line: 27: ch_ptr = malloc(100);
Taint: True
In Loop: false
line: 30: free(ch_ptr);
Taint: True
In Loop: false
line: 32: ch_ptr = malloc(500);
Taint: True
In Loop: false

>>-----> Memory leak analyser

...::: Memory leak analyser :::...
File path: samplers/example3.c
F unction name: main
memory leak found!
line: 10: array = new obj[100];

...::: Memory leak analyser :::...
File path: samplers/example3.c
Function name: while
memory leak found!
line: 27: array = malloc(1);
line: 28: array=2;
line: 30: array = malloc(3);

...::: Memory leak analyser :::...
File path: samplers/example5.c
Function name: main
memory leak found!
line: 8: ch_ptr = malloc(100);
line: 11: free(ch_ptr);
line: 12: free(ch_ptr);

...::: Memory leak analyser :::...
File path: samplers/example1.c
Function name: main
memory leak found!
line: 13: buf1R1 = (char *) malloc(BUFSIZER1);
line: 26: free(buf1R1);
line: 30: if (buf1R1) {
line: 31: free(buf1R1);

...::: Memory leak analyser :::...
File path: samplers/example2.c
Function name: main
memory leak found!
Maybe the function to liberate memory can be in a loo p context!
line: 7: ch_ptr=malloc(100);
line: 11: ch_ptr = 'A';
line: 12: free(ch_ptr);
line: 13: printf("%s\n", ch_ptr);

...::: Memory leak analyser :::...
File path: samplers/example6.c
Function name: main
memory leak found!
line: 8: ch_ptr = malloc(100);
line: 11: free(ch_ptr);
line: 13: ch_ptr = malloc(500);

...::: Memory leak analyser :::...
File path: samplers/example7.c
Function name: special
memory leak found!
line: 8: ch_ptr = malloc(100);
line: 15: free(ch_ptr);
line: 16: ch_ptr = malloc(500);
line: 17: ch_ptr=NULL;
line: 25: char *ch_ptr = NULL;

...::: Memory leak analyser :::...
File path: samplers/example7.c
Function name: main
memory leak found!
line: 27: ch_ptr = malloc(100);
line: 30: free(ch_ptr);
line: 32: ch_ptr = malloc(500);

>>-----> Start double free analyser

...::: Double free analys er :::...
File path: samplers/example5.c
Function name: main
Double free found!
line: 8: ch_ptr = malloc(100);
line: 11: free(ch_ptr);
line: 12: free(ch_ptr);

...::: Double free analyser :::...
File path: samplers/example1.c
Function name: main
Double free found!
line: 13: buf1R1 = (char *) malloc(BUFSIZER1);
line: 26: free(buf1R1);
line: 30: if (buf1R1) {
line: 31: free(buf1R1);

...::: Double free analyser :::...
File path: samplers/example2.c
Function name: main
Double free found!
Maybe the function to liberate memory can be in a loop context!
line: 7: ch_ptr=malloc(100);
line: 11: ch_ptr = 'A';
line: 12: free(ch_ptr);
line: 13: printf("%s\n", ch_ptr);

>>-----> Start use after free analyser

...::: Use after free analyser :::...
File path: samplers/example5.c
Function name: main
Use after free found
l ine: 8: ch_ptr = malloc(100);
line: 11: free(ch_ptr);
line: 12: free(ch_ptr);

...::: Use after free analyser :::...
File path: samplers/example1.c
Function name: main
Use after free found
line: 13: buf1R1 = (char *) malloc(BUFSIZER1);
line: 26: free(buf1R1);
line: 30: if (buf1R1) {
line: 31: free(buf1R1);

...::: Use after free analyser :::...
File path: samplers/example2.c
Function name: main
Use after free found
line: 7: ch_ptr=malloc(100);
line: 11: ch_ptr = 'A';
line: 12: free(ch_ptr);
line: 13: printf("%s\n", ch_ptr);

...::: Use after free analyser :::...
File path: samplers/example4.c
Function name: main
Use after free found
line: 8: ch_ptr = malloc(100);
line: 13: ch_ptr = 'A';
line: 14: free(ch_ptr);
line: 15: printf("%s\n", ch_ptr);

...::: Use after free analyser :::...
File path: samplers/example6.c
Function name: main
Use after free found
line: 8: ch_ptr = malloc(100);
line: 11: free(ch_ptr);
line: 13: ch_ptr = malloc(500);

...::: Use after free analyser :::...
File path: samplers/example7.c
Function name: special
Use after free found
line: 8: ch_ptr = malloc(100);
line: 15: free(ch_ptr);
line: 16: ch_ptr = malloc(500);
line: 17: ch_ptr=NULL;
line: 25: char *ch_ptr = NULL;

...::: Use after free analyser :::...
File path: samplers/example7.c
Function name: main
Use after free found
line: 27: ch_ptr = malloc(100);
line: 30: free(ch_ptr);
line: 32: ch_ptr = malloc(500);
